Midea V8 EasyFit VRF System
QuickConnect Zero-Brazing Fast Installation with CE Certified Gold Fin Anti-Corrosion
Faster Installation, Reduced Materials, Cleaner Commissioning for Sustainable Buildings
Traditional VRF installation requires open-flame brazing, on-site vacuum pumping, and manual refrigerant charging—processes that consume time, generate waste, and introduce quality variability. The V8 EasyFit (8-64 HP) eliminates all three through QuickConnect zero-brazing connectors and factory pre-charged R32 refrigerant circuits, delivering a fundamentally rethought installation methodology.
This system was designed for retail chain rollouts, school VRF deployments, and rapid-turnaround commercial fit-outs where schedule compression, construction waste reduction, and multi-site quality consistency are top priorities. With the construction sector responsible for nearly 40% of global carbon output, the EasyFit directly addresses this environmental burden.
CE certified for European market access and compatible with 50/60Hz dual-frequency power infrastructure worldwide, the system is ready for deployment across Europe, Southeast Asia, and international markets. Gold Fin anti-corrosion coating protects heat exchangers against salt spray, making the EasyFit ideal for tropical and maritime locations.
Core Technology Highlights
- QuickConnect Zero-Brazing: Precision-machined flare-and-lock joints eliminate open-flame work, reducing installation time by 40-50% and enabling work in occupied buildings without fire safety protocols.
- Factory Pre-Charged R32: Environmentally responsible R32 (GWP 675, F-Gas compliant) charged to exact specifications under nitrogen atmosphere, ensuring design-intent SEER and IEER performance from day one.
- Reduced Construction Carbon: 40-50% fewer on-site labor hours compress crew presence, equipment runtime, and logistics, significantly lowering installation-phase carbon footprint.
- Lean Material Footprint: QuickConnect architecture eliminates fittings, brazing consumables, and vacuum pump operation, supporting LEED and BREEAM certification points.
- Cleaner Commissioning: Eliminates combustion byproducts and contaminants, supporting WELL Building Standard and indoor air quality certifications.
- Gold Fin Anti-Corrosion: Salt spray resistance for coastal installations in Southeast Asia, tropical islands, and Mediterranean properties.
- Full Zone Intelligence: Supports individual zone control and multi-zone independent temperature scheduling with BMS connectivity via Modbus RTU and BACnet.
- OEM & ODM Flexibility: Custom brand identity and project-specific documentation for standardized rollouts across global markets.
Application Scenarios & Regional Deployment
The V8 EasyFit serves school VRF systems, retail chain stores, office fit-outs, tenant improvements, and hotel renovations. Regional deployments include:
- Southeast Asia: Tropical climate rating, Gold Fin coastal defense, and monsoon-rated performance
- Europe: CE certification, F-Gas compliant R32, and alignment with occupational health standards
- Middle East: GCC standard compliance, Gulf coastline protection, and rapid installation
- Africa: Simplified installation for limited skilled labor markets and wide voltage tolerance
Certifications: CE • Eurovent • F-Gas Compliant • LEED • BREEAM • TÜV SÜD • ISO 9001/14001/45001
Technical Specifications
| Capacity Range |
8-64 HP |
| Connection Technology |
QuickConnect (zero-brazing, flare-and-lock) |
| Refrigerant |
Factory pre-charged R32 (GWP 675), F-Gas compliant |
| Installation Time Reduction |
~40-50% vs. conventional VRF |
| On-Site Flame Work |
Completely eliminated |
| Max. Piping Length |
800 m |
| Max. Height Difference |
50 m |
| Coil Protection |
Gold Fin anti-corrosion (salt spray protection) |
| Power Supply |
Dual frequency 50/60Hz |
| BMS Protocols |
Modbus RTU, BACnet |
| Zone Control |
Individual zone control, multi-zone independent |
| OEM/ODM |
OEM available, ODM service |
| Compatible Indoor Units |
10 types |

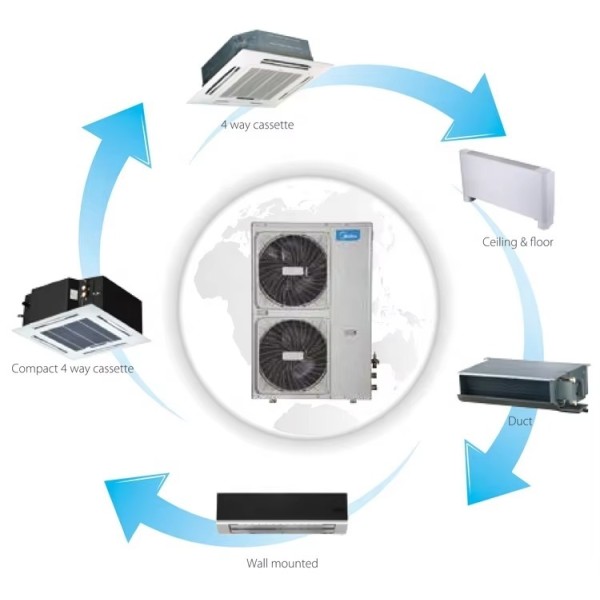

Available Indoor Units
One-Way Cassette • Two-Way Cassette • Compact Four-Way Cassette • Four-Way Cassette • Arc Duct • Medium Static Duct • High Static Duct • Wall Mounted • Floor Standing • Ceiling & Floor
